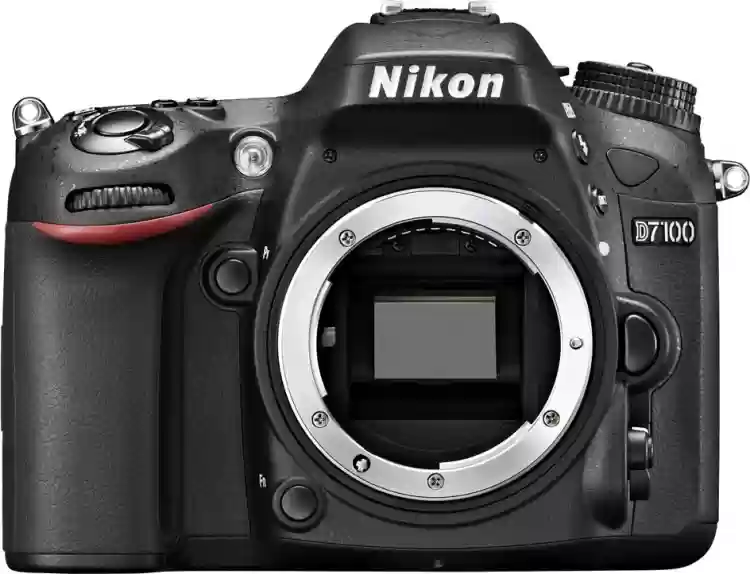

NIKON D7100 DIGITAL SLR CAMERA BODY

Type

Single-lens reflex digital camera

Lens mount

Nikon F mount (with AF coupling and AF contacts)

Effective angle of view

Nikon DX format; focal length in 35 mm [135] format equivalent to approx. 1.5x that of lenses with

Effective pixels

24.1 million

Image sensor

23.5 x 15.6 mm CMOS sensor

Total pixels

24.69 million

Dust-reduction System

Image sensor cleaning, Image Dust Off reference data (optional Capture NX 2 software required)

Image size (pixels)

DX (24 x 16) image area 6000 x 4000 (L), 4496 x 3000 (M), 2992 x 2000 (S) 1.3x (18 x 12) image area 4800 x 3200 (L), 3600 x 2400 (M), 2400 x 1600 (S) Photographs with image area of DX (24 x 16) taken in movie live view 6000 x 3368 (L), 4494 x 2528 (M), 2992 x 1860 (S) Photographs with image area of 1.3x (18 x 12) taken in movie live view 4800 x 2696 (L), 3600 x 2024 (M), 2400 x 1344 (S)

File format

NEF (RAW): 12 or 14 bit, lossless compressed or compressed JPEG: JPEG-Baseline compliant with fine (approx. 1 : 4),

Picture Control System

Standard, Neutral, Vivid, Monochrome, Portrait, Landscape; selected Picture Control can be modified; storage for custom Picture Controls

Media

SD (Secure Digital) and UHS-I compliant SDHC and SDXC memory cards

Double slot

Slot 2 can be used for overflow or backup storage or for separate storage of copies created using NEF+JPEG; pictures can be copied between cards.

File system

DCF (Design Rule for Camera File System) 2.0, DPOF (Digital Print Order Format), Exif (Exchangeable Image File Format for Digital Still Cameras) 2.3, PictBridge

Viewfinder

Eye-level pentaprism single-lens reflex viewfinder

Frame coverage

Approx. 100% horizontal and 100% vertical

Magnification

Approx. 0.94x (50 mm f/1.4 lens at infinity, -1.0 m-1)

Eyepoint

19.5 mm (-1.0 m-1; from center surface of viewfinder eyepiece lens)

Diopter adjustment

-2 – +1 m-1

Focusing screen

Type B BriteView Clear Matte Mark II screen with AF area brackets (framing grid can be displayed)

Reflex mirror

Quick return

Depth-of-field preview

Pressing depth-of-field preview button stops lens aperture down to value selected by user (A and M modes) or by camera (other modes)

Lens aperture

Instant return, electronically controlled

Compatible lenses

Compatible with AF NIKKOR lenses, including type G and D lenses (some restrictions apply to PC lenses) and DX lenses, AI-P NIKKOR lenses, and non-CPU AI lenses (A and M modes only). IX NIKKOR lenses, lenses for the F3AF, and non-AI lenses can not be used. The electronic rangefinder can be used with lenses that have a maximum aperture of f/5.6 or faster (the electronic rangefinder supports the center 1 focus point with lenses that have a maximum aperture of f/8 or faster).

Type

Electronically-controlled vertical-travel focal-plane shutter

Speed

1/8000 – 30 s in steps of 1/3 or 1/2 EV, bulb, time, X250

Flash sync speed

X=1/250 s; synchronizes with shutter at 1/320 s or slower (flash range drops at speeds between 1/250 and 1/320 s)

Release mode

single frame (S), continuous low speed (CL), continuous high speed (CH), quiet shutter-release (Q), self-timer, mirror up (MUP); interval timer photography supported

Approximate frame advance rate

JPEG and 12-bit NEF (RAW) images recorded with DX (24 x 16) selected for Image area L: 1 – 6 fps, CH: 6 fps JPEG and 12-bit NEF (RAW) images recorded with 1.3x (18 x 12) selected for Image area CL: 1 – 6 fps, CH: 7 fps 14-bit NEF (RAW) images recorded with DX (24 x 16) selected for Image area CL: 1 – 5 fps, CH: 5 fps 14-bit NEF (RAW) images recorded with 1.3x (18 x 12)

Self-timer

2 s, 5 s, 10 s, 20 s; 1 – 9 exposures at intervals of 0.5, 1, 2, or 3 s

Remote control modes (ML-L3)

Delayed remote, quick-response remote, remote mirror-up
